Mud flow in East Java (SPOT 5 images)

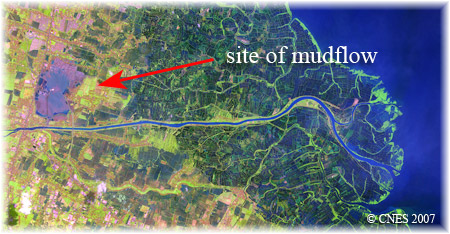

The satellite images below show the area that is affected by the mud flow that started in May 2006. Both are of the same image but displayed in different colour space. We are experimenting with the display of satellite images in HSV colour (USGS Munsell). For the images shown below, the displayed bands for the upper image is (R:Short-wave Infrared, G:Near-Infrared, B:Green); for the lower image, (R:Hue, G:Saturation, B:Value). You are welcome to share with us your knowledge of USGS Munsell colour system and its application in satellite images. Any comments on the HSV colour image shown below are also welcomed.

Image visible extent : approx. 7 km x 3.5 km

Full extent (navigable) : approx. 23.03 km x 11.98 km

* Navigation shortcut for images shown below : left click and drag to navigate images. You can also use the menu buttons near the bottom of the images.

Top image (R:Short-wave Infrared, G:Near-Infrared, B:Green); bottom image (R:Hue, G:Saturation, B:Value)

< back to top >

Images' Copyright : © CNES 2007
